本文以总账 - 明细账为例，其余系统报表大同小异
原理就是系统报表导出的URL其实在加载报表之后会在js里面，名为ExportUrlBase的属性
可以自己新窗口打开明细账报表加载数据之后，右键查看源代码，搜索ExportUrlBase，看后面的那一串URL值
对比一下自己点击导出->PDF或者Excel，会发现弹出来的URL地址就是ExportUrlBase属性的值拼接上了PDF或者EXCELOPENXML
因为我的程序只是需要这两种格式，所以也只是适配了这两种，看懂流程跟程序之后可以自行增加
UI插件改变查询方案条件
新增查询方案
先给需要UI插件修改的条件给一个默认值（更方便UI插件直接修改）
比如示例：给账簿、会计期间设置默认条件（因为获取报表输出主要还是按组织+会计月）
获取报表URL
明细账报表界面新窗口打开可以拿到一串URL
http://localhost/U9/erp/display.aspx?lnk=FI.GL.Process.Rpt.DetailsRpt&sId=3002nid&mId=1001001289685483&__curOId=1001008170100181&newopen=true&__dbg=true
去掉我们不需要的，留下 http://localhost/U9/erp/display.aspx?lnk=FI.GL.Process.Rpt.DetailsRpt&sId=3002&newopen=true （可以另起一个标签页验证能不能打开）

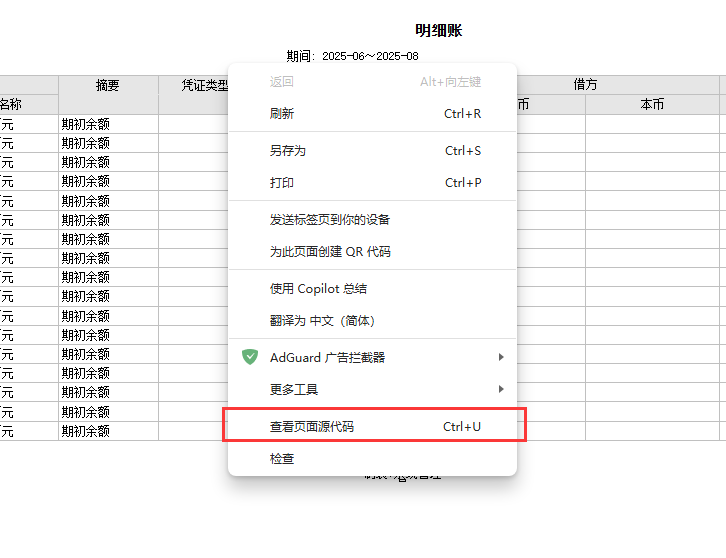

右键查看页面源代码（附）

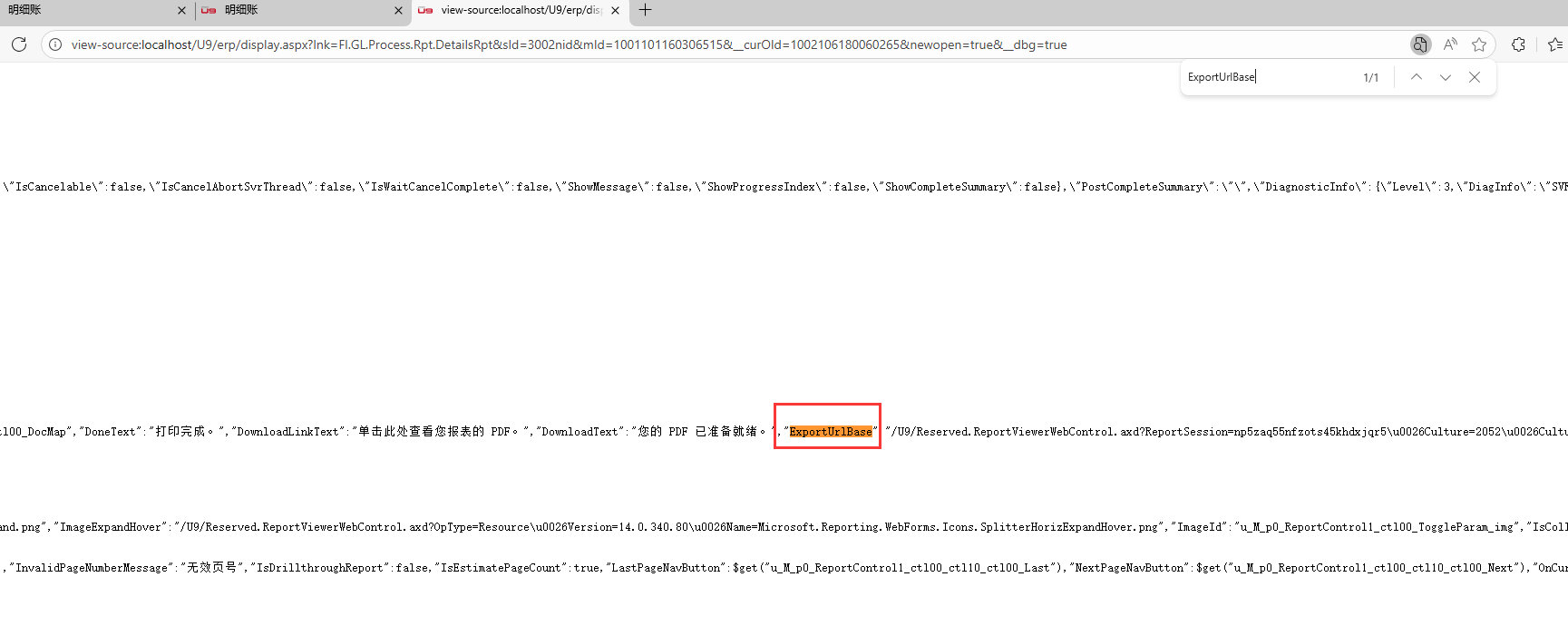

附：查看到的ExportUrlBase，就是导出的URL
增加自定义条件
通过UI插件改变上面默认查询方案的三个条件
UI插件配置示例
WebPartExtend_ReportFilter.config
<?xml version="1.0" encoding="utf-8" ?>
<configuration>
<configSections>
<section name="WebPartExtend" type="UFSoft.UBF.UI.Custom.ExtendedPartSection, UFSoft.UBF.UI.FormProcess" />
</configSections>
<WebPartExtend>
<!-- 总账-明细账 -->
<ExtendedPart parentPartFullName="UFIDA.U9.GL.DetailsRptUI.DetailsRptUIFormWebPart"
extendedPartFullName="UFIDA.U9.Cust.XXXX.UIPlugIn.DetailsRptUIPlugIn"
extendedPartAssemblyName="UFIDA.U9.Cust.XXXX.UIPlugIn.dll">
</ExtendedPart>
</WebPartExtend>
</configuration>
UI插件代码
DetailsRptUIPlugIn.cs

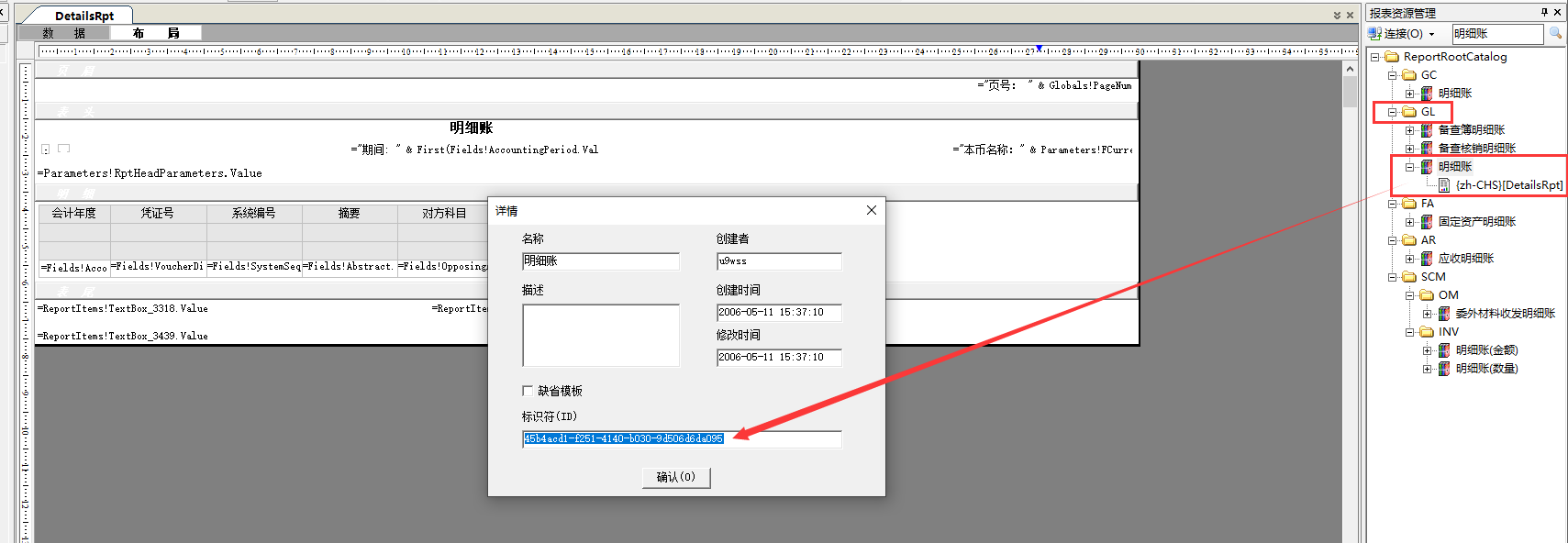

ReportID自己去UBF查看，或者调试一下代码，监听变量Part.CurrentState["ReportID"]的值
using System;
using System.Collections.Generic;
using UFIDA.U9.GL.DetailsRptUI;
using UFIDA.UBF.Query.CaseModel;
using UFIDA.UBF.Report.App.UI;
using UFSoft.UBF.Report.Filter.FilterModel;
using UFSoft.UBF.UI.IView;
using UFSoft.UBF.Util.Context;
namespace UFIDA.U9.Cust.XXXX.UIPlugIn
{
/// <summary>
/// 明细账
/// </summary>
public class DetailsRptUIPlugIn : UFSoft.UBF.UI.Custom.ExtendedPartBase
{
private DetailsRptUIFormWebPart _part;
// Part.CurrentState["ReportID"]
private readonly string ReportID = "45b4acd1-f251-4140-b030-9d506d6da095";
private Case myCase = null;
public override void AfterInit(IPart Part, EventArgs args)
{
base.AfterInit(Part, args);
_part = Part as DetailsRptUIFormWebPart;
if (_part != null)
{
SetMyCase();
}
}
public override void AfterDataLoad(IPart Part)
{
base.AfterDataLoad(Part);
_part = Part as DetailsRptUIFormWebPart;
if (_part != null)
{
ChangeUserCaseFilter();
}
}
private void SetMyCase()
{
string caseName = _part.NameValues["CaseName"]?.ToString();
if (string.IsNullOrEmpty(caseName)) return;
myCase = Common.Utils.LoadAndEnsureDefaultCase(ReportID, caseName);
}
private void ChangeUserCaseFilter()
{
if (myCase != null)
{
Common.Utils.UpdateUserCaseDisplayNameByCurrentLanguage(_part.Action.CurrentState[ReportCommonAction.UserCaseDefineStateName] as CaseDefine, myCase);
// 账簿（必须条件，不可能为空）
FilterValue fvSOB = myCase.FilterValues.GetObjectByName("SOB_Code");
string vSOB = Common.Utils.GetMainSOBID(ReportAppService.GetLoginOrgID());
fvSOB.SetValue(0, vSOB);
// 期间范围（必须条件，不可能为空） 3指定期间
FilterValue fvPeriodRange = myCase.FilterValues.GetObjectByName("PeriodRange");
if (fvPeriodRange.GetValue() != "3")
{
fvPeriodRange.SetValue(0, "3");
}
// 记账期间
FilterValue fvAccountingPeriod = myCase.FilterValues.GetObjectByName("AccountingPeriod");
string v1 = _part.NameValues["AccountingPeriodStart"]?.ToString();
string v2 = _part.NameValues["AccountingPeriodEnd"]?.ToString();
if (fvAccountingPeriod == null)
{
fvAccountingPeriod = Common.Utils.CreatePeriod("AccountingPeriod", myCase.FilterValues.Count + 1, UFSoft.UBF.Report.Filter.enuOperatorListType.Between, new List<string>() { v1, v2 });
myCase.FilterValues.Add(fvAccountingPeriod);
}
else if (fvAccountingPeriod.RelationOperator == UFSoft.UBF.Report.Filter.enuOperatorListType.Between)
{
fvAccountingPeriod.SetValue(0, v1);
fvAccountingPeriod.SetValue(1, v2);
}
else if (fvAccountingPeriod.RelationOperator == UFSoft.UBF.Report.Filter.enuOperatorListType.Equal)
{
if (v1 == v2) fvAccountingPeriod.SetValue(0, v1);
}
Common.Utils.SetCaseModelSession(this._part.Action, ReportID);
_part.Action.CurrentState["IsCaseChange"] = true;
_part.Action.CurrentState[ReportCommonAction.UserCaseStateName] = myCase;
}
}
}
}
UI插件Common.Utils
using System;
using System.Collections.Generic;
using System.Reflection;
using UFIDA.U9.UI.PDHelper;
using UFIDA.UBF.Query.CaseModel;
using UFIDA.UBF.Report.App.UI;
using UFIDA.UBF.Report.App.UI.CaseManager;
using UFIDA.UBF.Report.App.UI.Interface;
using UFIDA.UBF.Report.App.UI.ProcessStrategy;
using UFSoft.UBF.Report.Filter;
using UFSoft.UBF.Report.Filter.FilterModel;
using UFSoft.UBF.UI;
using UFSoft.UBF.UI.ActionProcess;
using UFSoft.UBF.UI.FormProcess;
using UFSoft.UBF.UI.IView;
using UFSoft.UBF.Util.Context;
using UFSoft.UBF.Util.DataAccess;
namespace UFIDA.U9.Cust.XXXX.UIPlugIn.Common
{
public class Utils
{
/// <summary>
/// 获取组织的主账簿ID
/// </summary>
/// <param name="orgID">组织ID</param>
/// <returns></returns>
public static string GetMainSOBID(string orgID)
{
string sql = "select ID from Base_SetofBooks where SOBType=0 and Org=" + orgID;
DataAccessor.RunSQL(DataAccessor.GetConn(), sql, null, out object sobobj);
return sobobj?.ToString();
}
/// <summary>
/// ReportCommonAction.UpdateUserCaseDisplayNameByCurrentLanguage方法调用
/// </summary>
/// <param name="caseDefine"></param>
/// <param name="userCase"></param>
public static void UpdateUserCaseDisplayNameByCurrentLanguage(CaseDefine caseDefine, Case userCase)
{
// 获取类型
Type type = typeof(ReportCommonAction);
// 定义参数类型数组
Type[] parameterTypes = new Type[] { typeof(CaseDefine), typeof(Case) };
// 获取方法信息
MethodInfo methodInfo = type.GetMethod("UpdateUserCaseDisplayNameByCurrentLanguage", BindingFlags.NonPublic | BindingFlags.Static, null, parameterTypes, null);
if (methodInfo == null) throw new Exception("ReportCommonAction静态方法 UpdateUserCaseDisplayNameByCurrentLanguage 未找到");
// 调用方法，传递参数
methodInfo.Invoke(null, new object[] { caseDefine, userCase });
}
/// <summary>
/// ReportCommonAction.SetCaseModelSession方法调用
/// </summary>
/// <param name="action"></param>
/// <param name="reportID">原方法里面这个值是从args获取的，UI插件没有，直接指定</param>
public static void SetCaseModelSession(BaseAction action, string reportID)
{
CaseModel caseModel = new CaseModel();
caseModel.Case = (action.CurrentState[ReportCommonAction.UserCaseStateName] as Case);
ReportProcessStrategy reportProcessStrategy = action.CurrentState[ReportAppService.GetReportProcessStrategySessionName()] as ReportProcessStrategy;
if (reportProcessStrategy != null)
{
try
{
caseModel.CaseDefine = reportProcessStrategy.ProcessCaseDefine(caseModel.Case, action.CurrentState[ReportCommonAction.UserCaseDefineStateName] as CaseDefine);
ReportDrillHelper.AddExportExcelControlParameter(caseModel.CaseDefine, false);
string text = reportProcessStrategy.VerifyUserCaseByCaseDefine(caseModel.CaseDefine, caseModel.Case);
if (text.Length > 0)
{
action.CurrentState["AdjustUserCaseDisplayInfo"] = text;
}
}
catch (Exception ex)
{
caseModel.CaseDefine = (action.CurrentState[ReportCommonAction.UserCaseDefineStateName] as CaseDefine);
}
}
else
{
caseModel.CaseDefine = (action.CurrentState[ReportCommonAction.UserCaseDefineStateName] as CaseDefine);
}
caseModel.QryModelID = new Guid(reportID);
action.CurrentState[ReportAppService.GetInputCaseModelSessionName()] = caseModel;
}
/// <summary>
/// 创建会计期间条件项
/// </summary>
/// <param name="name">条件名</param>
/// <param name="itemID">条件项ID</param>
/// <param name="relationOperator">关系操作符</param>
/// <returns></returns>
public static FilterValue CreatePeriod(string name, int itemID, enuOperatorListType relationOperator, List<string> values)
{
FilterValue filterValue = new FilterValue();
filterValue.Name = name;
filterValue.FilterItemID = itemID;
filterValue.RelationOperator = relationOperator;
filterValue.PageType = enuPageOfInputFilterValueType.basicPage;
filterValue.ReferenceType = enuReferenceType.reference;
filterValue.LogicOperator = enuOperatorListType.And;
filterValue.ValueType = enumFilterValueType.InputValue;
filterValue.Values = new ValueContext();
filterValue.Values.Labels.Add(name);
filterValue.Values.Values = values;
return filterValue;
}
/// <summary>
/// 创建会计年度条件项，等于
/// </summary>
/// <param name="name">条件名</param>
/// <param name="itemID">条件项ID</param>
/// <param name="v1"></param>
/// <returns></returns>
public static FilterValue CreateAccountingYearEqual(string name, int itemID, string v1)
{
FilterValue filterValue = new FilterValue();
filterValue.Name = name;
filterValue.FilterItemID = itemID;
filterValue.RelationOperator = enuOperatorListType.Equal;
filterValue.PageType = enuPageOfInputFilterValueType.basicPage;
filterValue.ReferenceType = enuReferenceType.reference;
filterValue.LogicOperator = enuOperatorListType.And;
filterValue.ValueType = enumFilterValueType.InputValue;
filterValue.Values = new ValueContext();
filterValue.Values.Labels.Add(name);
filterValue.Values.Values = new List<string>() { v1 };
return filterValue;
}
/// <summary>
/// 获取当前用户报表的指定查询方案，并确保有一个默认的查询方案
/// 如果当前用户报表没有默认查询方案，则设置指定查询方案为默认查询方案
/// </summary>
/// <param name="reportID">报表ID</param>
/// <param name="caseName">查询方案名</param>
/// <returns></returns>
public static Case LoadAndEnsureDefaultCase(string reportID, string caseName)
{
Case myCase = null;
string userid = PlatformContext.Current.UserID + "#" + ReportAppService.GetLoginOrgID();
Case defCase = ReportAppService.LoadDefalutCase(reportID, userid);
// 默认的方案就是要的查询方案
if (defCase != null && defCase.BasicInfo.Title == caseName)
{
myCase = defCase;
}
else
{
myCase = ReportAppService.LoadCase(reportID, userid, caseName);
// 这个查询方案不是当前用户创建的（别的用户共享的查询方案）
// 那就只能是从报表所有的查询方案中匹配
if (myCase == null)
{
ReportCaseManager caseManager = new ReportCaseManager();
var cases = caseManager.LoadCases(reportID); // 报表所有查询方案
foreach (Case item in cases)
{
if (item.BasicInfo.Title == caseName)
{
myCase = item;
break;
}
}
}
if (myCase == null) throw new Exception($"未找到名称【{caseName}】的查询方案！");
if (defCase == null)
{
// 没有默认查询方案，把当前找到的查询方案设置成默认查询方案
SetMyDefaultCase(myCase);
}
}
return myCase;
}
/// <summary>
/// 设置为默认查询方案
/// </summary>
/// <param name="case"></param>
public static void SetMyDefaultCase(Case @case)
{
UserCaseInfo userCaseInfo = new UserCaseInfo();
userCaseInfo.CaseID = @case.BasicInfo.ReportCaseID;
userCaseInfo.OrgID = Convert.ToInt64(ReportAppService.GetLoginOrgID());
userCaseInfo.UserID = Convert.ToInt64(PlatformContext.Current.UserID);
userCaseInfo.UserCaseType = UserCaseType.Default;
ICaseManager caseManager = new ReportCaseManager();
caseManager.SetMyDefaultUserCaseInfo(userCaseInfo);
}
}
}
报表SSO登录
U9系统自带的auotlogin.aspx拼接的return_url会是以菜单的形式打开，获取iframe难度大
不如仿照SSO登录，直接写一个ReportLogin.aspx，登录后Response.Redirect()
以下为示例的ReportLogin.aspx，可以根据情况个性化
ReportLogin.aspx
ReportLogin.aspx放到C:\yonyou\U9V60\Portal\api\v1目录下
_internalSecureToken是内网请求，所以直接定义了一个固定的值
如果是外网可访问，建议还是生成式token更好
<%@ Page Language="C#" %>
<%@ Import Namespace="UFSoft.UBF.UI.Portal.Components" %>
<%@ Import Namespace="UFSoft.UBF.UI.WebControlAdapter" %>
<%@ Import Namespace="UFSoft.UBF.UI.Portal" %>
<%@ Import Namespace="System.Web.UI" %>
<%@ Import Namespace="System.Web.Configuration" %>
<%@ Import Namespace="System.Text.RegularExpressions" %>
<%@ Import Namespace="System.Web.Security" %>
<%@ Import Namespace="System.Text" %>
<%@ Import Namespace="UFSoft.UBF.Util.Context" %>
<%@ Import Namespace="UFSoft.UBF.UI" %>
<%@ Import Namespace="UFSoft.UBF.UI.IProvider" %>
<%@ Import Namespace="UFSoft.UBF.MVC" %>
<%@ Import Namespace="System.Net" %>
<%@ Import Namespace="System.IO" %>
<%@ Import Namespace="System.Collections.Specialized" %>
<%@ Import Namespace="System.Web" %>
<script runat="server">
private const string _internalSecureToken = "2FFEAB291D1E7EAF76E94EBE93249C9D";
private string _username;
private string _enterpriseId;
private string _orgID;
private string _enterpriseName = string.Empty;
protected void Page_Load(object sender,EventArgs e)
{
Login();
}
private void Login()
{
string receivedToken = Request.QueryString["securetoken"];
if (string.IsNullOrEmpty(receivedToken) || receivedToken != _internalSecureToken)
{
Response.StatusCode = 403; // Forbidden
Response.Write("错误: 禁止访问。");
Response.End();
return;
}
_username = Request.QueryString["usercode"];
_enterpriseId = Request.QueryString["entcode"];
_orgID = Request.QueryString["org"];
if (string.IsNullOrEmpty(_username) || string.IsNullOrEmpty(_enterpriseId) || string.IsNullOrEmpty(_orgID))
{
Response.StatusCode = 400; // Bad Request
Response.Write("错误: 缺少 username, enterpriseId, 或 orgID 参数。");
Response.End();
return;
}
string reportUrl = Request.QueryString["reporttype"];
if (string.IsNullOrEmpty(reportUrl))
{
Response.StatusCode = 400;
Response.Write("错误: 缺少必需的 reporttype 参数。");
Response.End();
return;
}
CSUser user = new CSUser();
user.EnterpriseID = _enterpriseId;
user.OrgId = _orgID;
user.Username = _username;
user.LoginDateTime = DateTime.Now;
user.IP = this.Page.Request.UserHostAddress;
user.EnterpriseName = _enterpriseName;
user.UICulture = "zh-CN";
bool isToken = true;
UFSoft.UBF.MVC.Helper.UserAuthHelper.TransferUser(user, "", "", true, isToken);
try
{
UserCredential credential = UFSoft.UBF.UI.Portal.UserManagement.ValidUser(user,isToken);
if (credential.IsAuthenticated == LoginUserStatus.Success)
{
CSContext.Current["AppSettings"] = WebConfigurationManager.AppSettings;
CSContext.Current["ShowControlsTooltip"] = WebConfigurationManager.AppSettings["ShowControlsTooltip"];
CSContext.Current["ReferenceDisableClientCache"] = WebConfigurationManager.AppSettings["ReferenceDisableClientCache"];
CSContext.Current["quickmenusCache"] = null;
CSContext.Current["_PassWordStrategy"] = credential.PassWordStrategy;
CSContext.Current["_SearchSessionID"] = Guid.NewGuid().ToString();
CSContext.Current.OperationDate = DateTime.Now.Date;
CSContext.Current.UiDefaultCulture = UFSoft.UBF.UI.Portal.UserManagement.Provider.getDefaultLanByOrg(long.Parse(_orgID));
if (string.IsNullOrEmpty(CSContext.Current.User.OrgName))
{
CSOrganization csOrg = UFSoft.UBF.UI.Portal.UserManagement.getOrgByID(CSContext.Current.User.OrgId.ToString());
CSContext.Current.OrgCode = csOrg.Code;
CSContext.Current.User.OrgName = csOrg.Name;
}
else
{
CSContext.Current.OrgCode = UFSoft.UBF.UI.Portal.UserManagement.getOrgCode(user.OrgId.ToString());
}
SetDefaultTheme(user.OrgId.ToString());
SaveCookies(user);
WriteCurrentContext();
UFSoft.UBF.UI.Portal.UserManagement.UserLogoned(user.Username, CSContext.Current.UserName);
NameValueCollection incomingParams = new NameValueCollection(Request.QueryString);
incomingParams.Remove("usercode");
incomingParams.Remove("username");
incomingParams.Remove("enterpriseId");
incomingParams.Remove("entcode");
incomingParams.Remove("orgID");
incomingParams.Remove("org");
incomingParams.Remove("securetoken");
incomingParams.Remove("reporttype");
UriBuilder uriBuilder = new UriBuilder(reportUrl);
NameValueCollection baseParams = HttpUtility.ParseQueryString(uriBuilder.Query);
baseParams.Add(incomingParams);
uriBuilder.Query = baseParams.ToString();
string finalTargetUrl = uriBuilder.ToString();
Response.Redirect(finalTargetUrl);
}
}
catch (Exception)
{
throw;
}
}
private void WriteCurrentContext()
{
using (new SystemWritablePolicy())
{
PlatformContext.Current.OrgID = CSContext.Current.User.OrgId.ToString();
PlatformContext.Current.UserID = CSContext.Current.User.UserId.ToString();
PlatformContext.Current.UserCode = CSContext.Current.User.UserCode as string;
PlatformContext.Current.UserName = CSContext.Current.User.Username;
PlatformContext.Current.UserClientIP = CSContext.Current.User.IP;
}
}
private int CookiePeriodPolicy = 7;
private void SaveCookie(string key, string value)
{
this.Page.Response.Cookies[key].Value = Convert.ToBase64String(Encoding.Unicode.GetBytes(value));
this.Page.Response.Cookies[key].Expires = DateTime.Now.AddDays((double)this.CookiePeriodPolicy);
}
private void SaveCookies(CSUser csUser)
{
SaveCookie("EnterpriseId", _enterpriseId);
SaveCookie("SelectedOrg", csUser.OrgId as string);
SaveCookie("SelectedLan", csUser.UICulture);
SaveCookie("userName", csUser.Username);
}
private string SetDefaultTheme(string orgId)
{
string orgDefaultThemeByOrgID = UFSoft.UBF.UI.Portal.UserManagement.GetOrgDefaultThemeByOrgID(Convert.ToInt64(orgId));
if (((CSContext.Current != null) && (CSContext.Current.User != null)) && (CSContext.Current.User.Profile != null))
{
CSContext.Current.User.Profile.Theme = orgDefaultThemeByOrgID;
}
return orgDefaultThemeByOrgID;
}
</script>
<html xmlns="http://www.w3.org/1999/xhtml">
<head id="Head1" runat="server">
</head>
</html>
PuppeteerSharp实现读取html源代码并跳转下载
示例新增了一个ashx一般处理程序来使用PuppeteerSharp
思路有了，可以根据自己的习惯用API或者别的方式，总之这里提供出去的URL才是请求报表输出的入口
PuppeteerSharp程序可以使用Nuget安装最新稳定版2.0

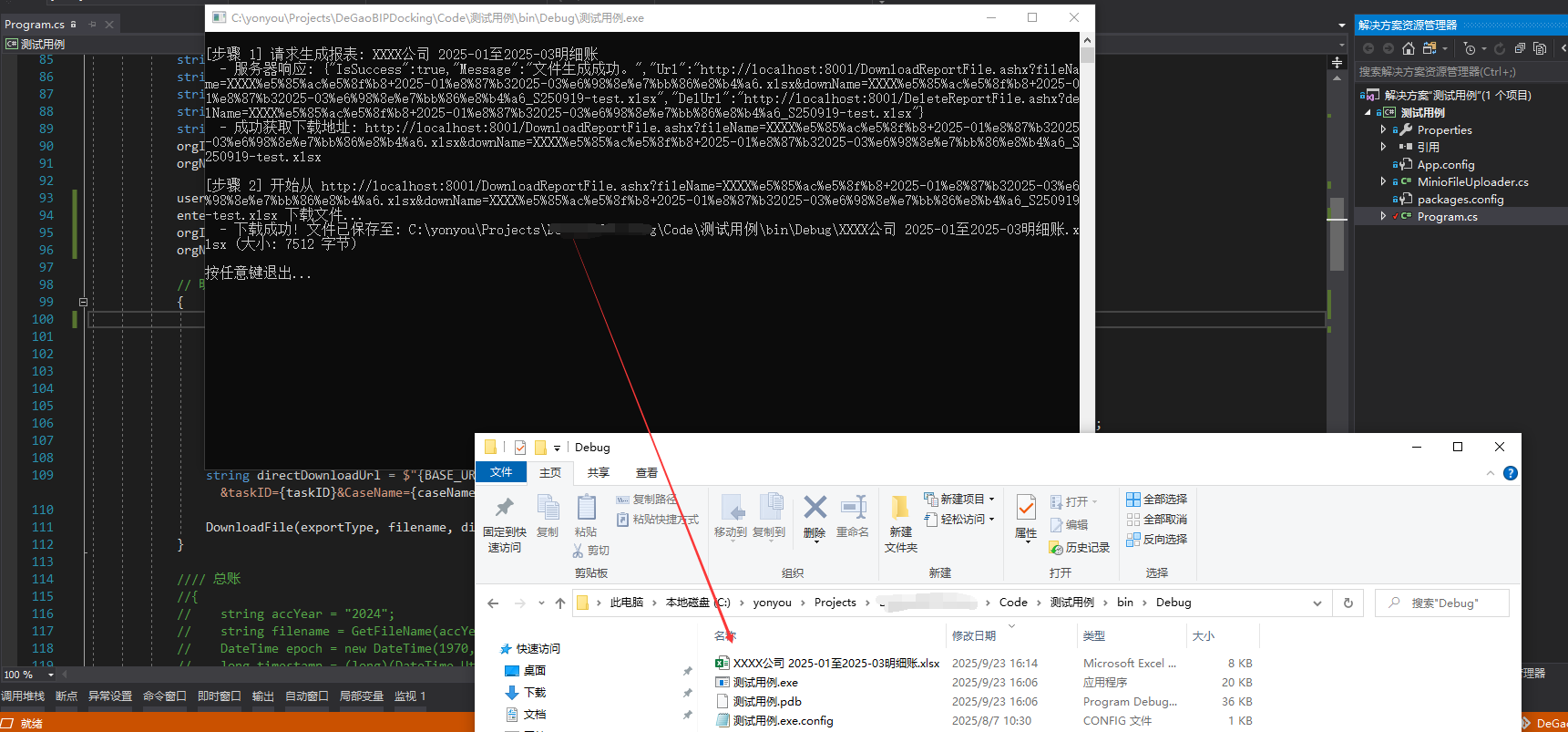

直接获取U9报表文件流有些报表可能会很大导致等待时间长，优化一下路径，分为三个ashx文件
DownloadReport.ashx主要进行SSO登录并解析ExportUrlBase后下载到临时目录
DownloadReportFile.ashx负责访问临时目录的文件，提供下载文件服务
DeleteReportFile.ashx负责删除临时目录的文件，提供删除文件服务
PuppeteerSharp
文件下载到临时目录DownloadReport.ashx
ExecutablePath = @"C:\Program Files (x86)\Microsoft\Edge\Application\msedge.exe"
这是edge浏览器，如果服务器没有，那就换成别的
p参数里面包含了timespan，避免URL被获取之后重复拿来使用，失效时间就是web.config配置的ExpirationTimeSeconds，以秒为单位
web.config里面PuppeteerTimeoutMinutes是访问报表URL等待的超时时间，因为报表首次访问会有冷启动，加上系统报表查询时间，最好是设置长一点，这里默认30分钟
web.config配置在下面
using Newtonsoft.Json;
using PuppeteerSharp;
using System;
using System.Collections.Specialized;
using System.Configuration;
using System.Diagnostics;
using System.IO;
using System.Net;
using System.Net.Http;
using System.Security;
using System.Text.RegularExpressions;
using System.Threading.Tasks;
using System.Web;
namespace SHAPIPost
{
public class DownloadHandler : HttpTaskAsyncHandler
{
private static readonly string encryptionKey = ConfigurationManager.AppSettings["EncryptionKey"];
private static readonly string encryptionIV = ConfigurationManager.AppSettings["EncryptionIV"];
private static readonly string reportBaseUrl = ConfigurationManager.AppSettings["ReportBaseUrl"];
private static readonly string loginPageBaseUrl = ConfigurationManager.AppSettings["U9LoginBaseUrl"];
private static readonly string timeoutSetting = ConfigurationManager.AppSettings["PuppeteerTimeoutMinutes"];
private static readonly string expirationTimeSeconds = ConfigurationManager.AppSettings["ExpirationTimeSeconds"];
static DownloadHandler()
{
ServicePointManager.SecurityProtocol = SecurityProtocolType.Tls12 | SecurityProtocolType.Tls11 | SecurityProtocolType.Tls;
}
// IHttpAsyncHandler 的 IsReusable 属性，我们用 override 实现
public override bool IsReusable { get { return false; } }
// 【核心下载逻辑 - 全新改造版】
public override async Task ProcessRequestAsync(HttpContext context)
{
var stopwatch = Stopwatch.StartNew();
string requestId = context.Request.QueryString["taskID"];
if (string.IsNullOrEmpty(requestId)) requestId = Guid.NewGuid().ToString("N").Substring(0, 8);
ReportLogger.Log(requestId, $"请求开始: {context.Request.Url}");
var Response = context.Response;
Response.ContentType = "application/json"; // 响应类型改为JSON
try
{
// --- 1. 认证和参数准备 ---
var authResult = AuthenticateAndPrepare(context);
string exportType = authResult.ExportType;
string fileExtension = ".dat";
if (exportType.Equals("PDF", StringComparison.OrdinalIgnoreCase)) { fileExtension = ".pdf"; }
else if (exportType.Equals("EXCELOPENXML", StringComparison.OrdinalIgnoreCase)) { fileExtension = ".xlsx"; }
else if (exportType.Equals("CSV", StringComparison.OrdinalIgnoreCase)) { fileExtension = ".csv"; }
// 使用GUID确保文件名唯一，避免冲突
string fileName = $"{authResult.Filename}{fileExtension}";
string uniqueFileName = $"{authResult.Filename}_{requestId}{fileExtension}";
// --- 2. 等待报表在服务器端完全生成 ---
ReportLogger.Log(requestId, $"开始生成报表: {authResult.BrowserLoginUrl}");
byte[] fileBytes = await GenerateReportBytesAsync(authResult.BrowserLoginUrl, exportType, requestId, context.Server);
ReportLogger.Log(requestId, $"报表生成完毕，大小: {fileBytes.Length} 字节。");
// --- 3. 将文件保存到服务器本地目录 ---
string directoryPath = context.Server.MapPath("~/ReportFiles");
Directory.CreateDirectory(directoryPath); // 确保目录存在
string savePath = Path.Combine(directoryPath, uniqueFileName);
if (File.Exists(savePath)) File.Delete(savePath);
File.WriteAllBytes(savePath, fileBytes);
ReportLogger.Log(requestId, $"文件已成功保存至磁盘: {savePath}");
// --- 4. 构建可访问的URL和返回结果 ---
var appUrl = HttpContext.Current.Request.Url;
string baseUrl = $"{appUrl.Scheme}://{appUrl.Authority}{HttpContext.Current.Request.ApplicationPath.TrimEnd('/')}";
string downloadUrl = $"{baseUrl}/DownloadReportFile.ashx?fileName={HttpUtility.UrlEncode(fileName)}&downName={HttpUtility.UrlEncode(uniqueFileName)}";
string delUrl = $"{baseUrl}/DeleteReportFile.ashx?delName={HttpUtility.UrlEncode(uniqueFileName)}";
var result = new
{
IsSuccess = true,
Message = "文件生成成功。",
Url = downloadUrl,
DelUrl = delUrl
};
ReportLogger.Log(requestId, "准备向客户端发送JSON响应。");
Response.Write(JsonConvert.SerializeObject(result));
ReportLogger.Log(requestId, "已向客户端发送JSON响应。");
}
catch (Exception ex)
{
ReportLogger.Log(requestId, $"处理失败: {ex.Message} \n {ex.StackTrace}");
Response.StatusCode = 500;
var result = new
{
IsSuccess = false,
Message = "处理请求时发生错误: " + ex.Message
};
Response.Write(JsonConvert.SerializeObject(result));
}
finally
{
stopwatch.Stop();
ReportLogger.Log(requestId, $"请求结束，总耗时: {stopwatch.ElapsedMilliseconds} ms");
}
}
private async Task<byte[]> GenerateReportBytesAsync(string browserLoginUrl, string exportType, string requestId, HttpServerUtility Server)
{
IBrowser browser = null;
try
{
ReportLogger.Log(requestId, "后台任务开始：启动Puppeteer...");
int timeoutMinutes = 30;
if (!string.IsNullOrEmpty(timeoutSetting) && int.TryParse(timeoutSetting, out int parsedTimeout))
{
timeoutMinutes = parsedTimeout;
}
browser = await Puppeteer.LaunchAsync(new LaunchOptions
{
Headless = true,
IgnoreHTTPSErrors = true,
ExecutablePath = @"C:\Program Files (x86)\Microsoft\Edge\Application\msedge.exe"
});
IBrowserContext incognitoContext = null;
try
{
// 1. 创建一个独立的、一次性的隐身浏览器上下文
incognitoContext = await browser.CreateIncognitoBrowserContextAsync();
ReportLogger.Log(requestId, "后台任务：已创建独立的Incognito上下文。");
// 2. 在这个纯净的上下文中创建一个新页面
var page = await incognitoContext.NewPageAsync();
// 后续所有操作都在这个隔离的页面中进行，不受缓存和Cookie影响
ReportLogger.Log(requestId, $"后台任务：Puppeteer访问SSO登录链接: {browserLoginUrl}");
page.DefaultNavigationTimeout = timeoutMinutes * 60 * 1000;
await page.GoToAsync(browserLoginUrl, new NavigationOptions { WaitUntil = new[] { WaitUntilNavigation.Networkidle0 } });
string reportHtml = await page.GetContentAsync();
var regex = new Regex("\"ExportUrlBase\":\"([^\"]*)\"");
Match match = regex.Match(reportHtml);
if (!match.Success)
{
string debugDir = Server.MapPath("~/ReportDebug");
Directory.CreateDirectory(debugDir);
string timestamp = DateTime.Now.ToString("yyyyMMddHHmmss");
string debugHtmlPath = Path.Combine(debugDir, $"debug_page_{timestamp}.html");
File.WriteAllText(debugHtmlPath, reportHtml);
throw new Exception($"无法在目标报表页面中解析到导出链接(ExportUrlBase)。已将调试HTML内容保存至 {Path.GetFileName(debugHtmlPath)}。");
}
string exportUrlBase = Regex.Unescape(match.Groups[1].Value);
var reportUri = new Uri(page.Url);
string finalDownloadUrl = $"{reportUri.Scheme}://{reportUri.Authority}{exportUrlBase}{exportType}";
ReportLogger.Log(requestId, $"后台任务：获取到下载链接，准备下载: {finalDownloadUrl}");
var cookies = await page.GetCookiesAsync();
var cookieContainer = new CookieContainer();
foreach (var cookie in cookies)
{
cookieContainer.Add(reportUri, new Cookie(cookie.Name, cookie.Value, cookie.Path, cookie.Domain));
}
using (var handler = new HttpClientHandler { CookieContainer = cookieContainer })
using (var client = new HttpClient(handler))
{
client.Timeout = TimeSpan.FromMinutes(timeoutMinutes);
client.DefaultRequestHeaders.Add("User-Agent", "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/104.0.0.0 Safari/537.36");
byte[] fileBytes;
// 使用 GetAsync 而不是 GetByteArrayAsync，以便先检查响应头
using (var response = await client.GetAsync(finalDownloadUrl, HttpCompletionOption.ResponseHeadersRead))
{
// 检查 Content-Type
var contentType = response.Content.Headers.ContentType?.MediaType ?? string.Empty;
if (contentType.Equals("text/html", StringComparison.OrdinalIgnoreCase))
{
// 如果是HTML，尝试读取内容用于记录日志，然后抛出异常
string errorHtml = await response.Content.ReadAsStringAsync();
ReportLogger.Log(requestId, $"错误：服务器返回了HTML页面，可能因为会话过期。页面内容预览: {errorHtml.Substring(0, Math.Min(500, errorHtml.Length))}");
throw new InvalidDataException("下载失败：服务器返回了HTML错误页面，报表会话可能已过期或服务已重启。");
}
response.EnsureSuccessStatusCode(); // 检查是否有其他HTTP错误
// Content-Type看起来正常，现在下载完整的文件内容
fileBytes = await response.Content.ReadAsByteArrayAsync();
}
if (fileBytes == null || fileBytes.Length == 0)
{
throw new Exception("文件下载失败，获取到的文件流为空。");
}
ReportLogger.Log(requestId, $"后台任务：文件下载成功，大小: {fileBytes.Length} 字节。");
// 可选，修复文件头
if (exportType.Equals("EXCELOPENXML", StringComparison.OrdinalIgnoreCase))
{
ReportLogger.Log(requestId, $"文件原始大小: {fileBytes.Length} 字节。准备进行修复...");
// 调用修复器，获取干净的文件字节流
byte[] repairedFileBytes = ExcelRepairer.RepairExcelFile(fileBytes);
ReportLogger.Log(requestId, $"文件修复后大小: {repairedFileBytes.Length} 字节。");
return repairedFileBytes;
}
return fileBytes;
}
}
finally
{
// 3. 确保任务结束后，无论成功或失败，都关闭并销毁这个上下文及其所有数据（缓存、Cookie等）
if (incognitoContext != null)
{
await incognitoContext.CloseAsync();
ReportLogger.Log(requestId, "后台任务：Incognito上下文已关闭并清理。");
}
}
}
finally
{
if (browser != null)
{
// 使用带超时的关闭方式，防止主浏览器进程卡死
ReportLogger.Log(requestId, "后台任务：准备关闭主Puppeteer浏览器（带10秒超时）...");
var closeTask = browser.CloseAsync();
var timeoutTask = Task.Delay(TimeSpan.FromSeconds(10));
var completedTask = await Task.WhenAny(closeTask, timeoutTask);
if (completedTask == closeTask)
{
ReportLogger.Log(requestId, "后台任务：主Puppeteer浏览器在10秒内成功关闭。");
}
else
{
ReportLogger.Log(requestId, "警告：关闭主Puppeteer浏览器超时（超过10秒），已放弃等待。");
}
}
}
}
private AuthResult AuthenticateAndPrepare(HttpContext context)
{
var Request = context.Request;
var routeData = context.Request.RequestContext.RouteData.Values;
if (string.IsNullOrEmpty(encryptionKey) || string.IsNullOrEmpty(encryptionIV))
throw new ConfigurationErrorsException("未在配置中找到 EncryptionKey 或 EncryptionIV 设置。");
if (string.IsNullOrEmpty(loginPageBaseUrl))
throw new ConfigurationErrorsException("未在配置中找到 U9LoginBaseUrl 设置。");
string reportTypeKey = routeData["reporttype"] as string;
string encryptedPayload = Request.QueryString["p"];
string filename = Request.QueryString["filename"];
string exportType = Request.QueryString["exporttype"] ?? "PDF";
if (string.IsNullOrEmpty(encryptedPayload) || string.IsNullOrEmpty(reportTypeKey))
throw new ArgumentException("缺少必需的 p 或 reporttype 参数。");
if (string.IsNullOrEmpty(filename)) filename = reportTypeKey + "_" + DateTime.Now.ToString("yyyyMMddHHmmss");
string reportTypeLink = ConfigurationManager.AppSettings[reportTypeKey];
if (string.IsNullOrEmpty(reportTypeLink))
throw new ConfigurationErrorsException("未在配置中为 reporttype 键 '" + reportTypeKey + "' 找到对应的link配置。");
string reportUrl = $"{reportBaseUrl}?{reportTypeLink}";
string decryptedPayload = Utils.DecryptString(encryptedPayload, encryptionKey, encryptionIV);
if (string.IsNullOrEmpty(decryptedPayload))
throw new SecurityException("凭证解密失败。");
NameValueCollection authParams = HttpUtility.ParseQueryString(decryptedPayload);
string userCode = authParams["usercode"],
enterpriseId = authParams["entcode"],
organizationId = authParams["org"],
timestampStr = authParams["timestamp"];
if (string.IsNullOrEmpty(userCode) || string.IsNullOrEmpty(enterpriseId) || string.IsNullOrEmpty(organizationId) || string.IsNullOrEmpty(timestampStr))
{
throw new ArgumentException("解密后的凭证信息不完整（缺少用户、企业、组织或时间戳）。");
}
if (!Utils.IsUnixTimestamp(timestampStr))
{
throw new SecurityException("无效的时间戳格式，请使用Unix时间戳。");
}
if (!long.TryParse(timestampStr, out long unixTimestamp))
{
throw new SecurityException("无效的时间戳格式。");
}
int timeoutSeconds = 60;
if (!string.IsNullOrEmpty(timeoutSetting))
{
int.TryParse(expirationTimeSeconds, out timeoutSeconds);
}
DateTime requestTime = Utils.UnixTimestampToDateTime(unixTimestamp);
bool isExpired = Utils.IsTimeExpired(requestTime, timeoutSeconds);
if (isExpired)
{
throw new SecurityException("链接已过期。");
}
var uriBuilder = new UriBuilder(loginPageBaseUrl);
var query = HttpUtility.ParseQueryString(uriBuilder.Query);
query["usercode"] = userCode;
query["entcode"] = enterpriseId;
query["org"] = organizationId;
query["reporttype"] = reportUrl;
var originalParams = new NameValueCollection(Request.QueryString);
originalParams.Remove("p");
originalParams.Remove("reporttype");
originalParams.Remove("filename");
query.Add(originalParams);
uriBuilder.Query = query.ToString();
return new AuthResult { BrowserLoginUrl = uriBuilder.ToString(), Filename = filename, ExportType = exportType };
}
}
internal class AuthResult
{
public string BrowserLoginUrl { get; set; }
public string Filename { get; set; }
public string ExportType { get; set; }
}
}
文件下载服务DownloadReportFile.ashx
通过中转服务提供对临时目录的文件下载，比直接提供流更稳定
而且有下载的文件存档，能够更方便调试是哪一步出现错误
using System;
using System.IO;
using System.Web;
namespace SHAPIPost
{
public class DownloadReportFileHandler : IHttpHandler
{
public void ProcessRequest(HttpContext context)
{
// --- 1. 根据新的URL结构解析参数 ---
// 用户下载时看到的友好文件名，来自 'fileName' 参数
string friendlyFileName = context.Request.QueryString["fileName"];
// 服务器上存储的唯一文件名，来自 'downName' 参数
string serverFileName = context.Request.QueryString["downName"];
// 提供一个回退机制，如果友好的fileName参数缺失，则使用服务器文件名
if (string.IsNullOrWhiteSpace(friendlyFileName))
{
friendlyFileName = serverFileName;
}
// --- 2. 安全性校验 (使用 serverFileName) ---
if (string.IsNullOrWhiteSpace(serverFileName))
{
context.Response.StatusCode = 400; // Bad Request
// 注意：根据新的URL结构，现在应该检查 'downName'
context.Response.StatusDescription = "Missing required 'downName' parameter.";
context.Response.End();
return;
}
try
{
string reportFilesDir = context.Server.MapPath("~/ReportFiles");
// 使用 serverFileName 在磁盘上查找文件
string physicalFilePath = Path.Combine(reportFilesDir, serverFileName);
physicalFilePath = Path.GetFullPath(physicalFilePath);
if (!physicalFilePath.StartsWith(reportFilesDir, StringComparison.OrdinalIgnoreCase))
{
context.Response.StatusCode = 403; // Forbidden
context.Response.StatusDescription = "Access to the requested file is forbidden.";
context.Response.End();
return;
}
if (!File.Exists(physicalFilePath))
{
context.Response.StatusCode = 404; // Not Found
context.Response.StatusDescription = "The requested file was not found.";
context.Response.End();
return;
}
// --- 3. 文件流式传输 (使用 friendlyFileName) ---
context.Response.Clear();
context.Response.ContentType = GetMimeType(Path.GetExtension(serverFileName));
// 在 Content-Disposition 中使用 friendlyFileName
context.Response.AddHeader("Content-Disposition", "attachment; filename=" + HttpUtility.UrlEncode(friendlyFileName, System.Text.Encoding.UTF8));
context.Response.TransmitFile(physicalFilePath);
context.Response.Flush();
}
catch (Exception)
{
context.Response.StatusCode = 500; // Internal Server Error
context.Response.StatusDescription = "An error occurred while processing your request.";
}
finally
{
context.Response.End();
}
}
public bool IsReusable => false;
private string GetMimeType(string extension)
{
switch (extension.ToLower())
{
case ".pdf": return "application/pdf";
case ".xlsx": return "application/vnd.openxmlformats-officedocument.spreadsheetml.sheet";
case ".xls": return "application/vnd.ms-excel";
case ".csv": return "text/csv";
default: return "application/octet-stream";
}
}
}
}
文件删除服务DeleteReportFile.ashx
按需调用文件删除服务，比如文件上传到Minio之后的第三方OSS，可以删除本地的留档
也可以在处理文件下载服务之后，配置一个变量控制是否下载后删除，平常都是开启下载后删除，线上有问题的时候，更改配置为关闭下载后删除，方便查看临时目录的原文件是否有问题
using Newtonsoft.Json;
using System;
using System.IO;
using System.Web;
namespace SHAPIPost
{
public class DeleteReportFileHandler : IHttpHandler
{
public void ProcessRequest(HttpContext context)
{
context.Response.ContentType = "application/json";
try
{
// 从请求中获取要删除的文件名，推荐使用POST请求体传递
string fileNameToDelete = context.Request.Form["delName"];
if (string.IsNullOrEmpty(fileNameToDelete))
{
fileNameToDelete = context.Request.QueryString["delName"];
}
if (string.IsNullOrWhiteSpace(fileNameToDelete))
{
throw new ArgumentException("缺少 delName 参数。");
}
// --- 安全性校验 ---
// 1. 获取基础存储目录的物理路径
string reportFilesDir = context.Server.MapPath("~/ReportFiles");
// 2. 组合出要删除文件的完整物理路径
string physicalFileToDelete = Path.Combine(reportFilesDir, fileNameToDelete);
// 3. 规范化路径以防止路径遍历攻击 (e.g., "..\web.config")
physicalFileToDelete = Path.GetFullPath(physicalFileToDelete);
// 4. 【关键】确保要删除的文件确实在我们指定的目录内
if (!physicalFileToDelete.StartsWith(reportFilesDir, StringComparison.OrdinalIgnoreCase))
{
throw new System.Security.SecurityException("禁止访问指定目录之外的文件。");
}
if (File.Exists(physicalFileToDelete))
{
File.Delete(physicalFileToDelete);
var successResult = new { IsSuccess = true, Message = $"文件 '{fileNameToDelete}' 已成功删除。" };
context.Response.Write(JsonConvert.SerializeObject(successResult));
}
else
{
throw new FileNotFoundException($"文件 '{fileNameToDelete}' 不存在。");
}
}
catch (Exception ex)
{
var errorResult = new { IsSuccess = false, Message = ex.Message };
context.Response.Write(JsonConvert.SerializeObject(errorResult));
}
}
public bool IsReusable
{
get { return false; }
}
}
}
Utils.cs
using System;
using System.Data;
using System.Data.SqlClient;
using System.IO;
using System.Net;
using System.Security.Cryptography;
using System.Text;
namespace SHAPIPost
{
public static class Utils
{
/// <summary>
/// AES解密
/// </summary>
/// <param name="cipherText">密文</param>
/// <param name="encryptionKey">密钥</param>
/// <param name="encryptionIV">iv向量</param>
public static string DecryptString(string cipherText, string encryptionKey, string encryptionIV)
{
try
{
string base64 = cipherText.Replace('-', '+').Replace('_', '/');
int padding = base64.Length % 4;
if (padding != 0)
{
base64 += new string('=', 4 - padding);
}
byte[] cipherTextBytes = Convert.FromBase64String(base64);
using (Aes aesAlg = Aes.Create())
{
aesAlg.Key = Encoding.UTF8.GetBytes(encryptionKey);
aesAlg.IV = Encoding.UTF8.GetBytes(encryptionIV);
ICryptoTransform decryptor = aesAlg.CreateDecryptor(aesAlg.Key, aesAlg.IV);
using (MemoryStream msDecrypt = new MemoryStream(cipherTextBytes))
{
using (CryptoStream csDecrypt = new CryptoStream(msDecrypt, decryptor, CryptoStreamMode.Read))
{
using (StreamReader srDecrypt = new StreamReader(csDecrypt))
{
return srDecrypt.ReadToEnd();
}
}
}
}
}
catch (Exception)
{
return null;
}
}
/// <summary>
/// AES加密
/// </summary>
/// <param name="plainText">明文文本</param>
/// <param name="encryptionKey">密钥</param>
/// <param name="encryptionIV">iv向量</param>
public static string EncryptString(string plainText, string encryptionKey, string encryptionIV)
{
using (Aes aesAlg = Aes.Create())
{
aesAlg.Key = Encoding.UTF8.GetBytes(encryptionKey);
aesAlg.IV = Encoding.UTF8.GetBytes(encryptionIV);
ICryptoTransform encryptor = aesAlg.CreateEncryptor(aesAlg.Key, aesAlg.IV);
using (MemoryStream msEncrypt = new MemoryStream())
{
using (CryptoStream csEncrypt = new CryptoStream(msEncrypt, encryptor, CryptoStreamMode.Write))
{
using (StreamWriter swEncrypt = new StreamWriter(csEncrypt))
{
swEncrypt.Write(plainText);
}
byte[] encrypted = msEncrypt.ToArray();
return Convert.ToBase64String(encrypted)
.Replace('+', '-')
.Replace('/', '_')
.TrimEnd('=');
}
}
}
}
/// <summary>
/// 判断是否为Unix时间戳格式
/// </summary>
/// <param name="timestamp">时间戳字符串</param>
/// <returns>是否为Unix时间戳</returns>
public static bool IsUnixTimestamp(string timestamp)
{
if (long.TryParse(timestamp, out long value))
{
// Unix时间戳通常在这个范围内（1970年到2038年左右）
return value >= 0 && value <= 2147483647;
}
return false;
}
/// <summary>
/// 将Unix时间戳转换为DateTime
/// </summary>
/// <param name="timestamp">Unix时间戳</param>
/// <returns>DateTime对象</returns>
public static DateTime UnixTimestampToDateTime(long timestamp)
{
DateTime epoch = new DateTime(1970, 1, 1, 0, 0, 0, DateTimeKind.Utc);
return epoch.AddSeconds(timestamp);
}
/// <summary>
/// 检查请求时间是否已过期
/// </summary>
/// <param name="requestTime">请求时间</param>
/// <param name="timeoutSeconds">超时秒数</param>
/// <returns>是否已过期</returns>
public static bool IsTimeExpired(DateTime requestTime, int timeoutSeconds)
{
DateTime currentTime;
if (requestTime.Kind == DateTimeKind.Utc)
{
currentTime = DateTime.UtcNow;
}
else
{
currentTime = DateTime.Now;
}
TimeSpan timeDiff = currentTime - requestTime;
return Math.Abs(timeDiff.TotalSeconds) > timeoutSeconds;
}
}
}
ExcelRepairer.cs
ExcelRepairer处理我们获取报表过程中写入了一些不干净的字节流到文件头，导致excel异常打不开。
此方法依赖于.NET的 ZipArchive 类能够容忍您文件中的损坏程度，并成功枚举出其中的所有条目(entries)。
如果文件的中心目录损坏到连条目列表都无法读取，那么此方法也将失败。
namespace SHAPIPost
{
using System.IO;
using System.IO.Compression;
public static class ExcelRepairer
{
/// <summary>
/// 通过重建ZIP归档的方式，尝试修复一个.xlsx文件。
/// 此方法可以修复因中心目录与本地文件头元数据不一致（如Length不对）导致的问题。
/// </summary>
/// <param name="corruptedFileBytes">原始的、损坏的.xlsx文件字节数组。</param>
/// <returns>一个新的、结构正确的.xlsx文件字节数组。</returns>
public static byte[] RepairExcelFile(byte[] corruptedFileBytes)
{
// 创建一个内存流用于输出新的、修复后的文件
using (var outputStream = new MemoryStream())
{
// 在输出流上创建一个新的、空的ZIP归档
using (var destinationArchive = new ZipArchive(outputStream, ZipArchiveMode.Create, true))
{
// 使用输入字节创建一个内存流来读取损坏的文件
using (var inputStream = new MemoryStream(corruptedFileBytes))
// 以“读取”模式打开损坏的归档，即使它有错误，也希望能读出条目
using (var sourceArchive = new ZipArchive(inputStream, ZipArchiveMode.Read))
{
// 遍历损坏归档中的每一个条目（内部文件）
foreach (var sourceEntry in sourceArchive.Entries)
{
// 在新的归档中，为当前条目创建一个同名的新条目
// 我们让.NET自己决定压缩级别等参数
var destinationEntry = destinationArchive.CreateEntry(sourceEntry.FullName);
// 打开源条目的数据流进行读取
using (var sourceStream = sourceEntry.Open())
// 打开新条目的数据流进行写入
using (var destinationStream = destinationEntry.Open())
{
// 将原始数据从损坏的归档中完整地复制到新的归档中
sourceStream.CopyTo(destinationStream);
}
}
}
}
// 当 using (destinationArchive...) 代码块结束时，
// .NET会自动根据我们实际写入的数据，在文件末尾生成一个全新的、100%正确的中心目录。
// 这就完成了修复。
return outputStream.ToArray();
}
}
}
}
ReportLogger.cs
using System;
using System.IO;
using System.Threading.Tasks;
using System.Web;
namespace SHAPIPost
{
/// <summary>
/// 轻量级的异步、线程安全日志记录器。
/// </summary>
public static class ReportLogger
{
private static readonly string LogDirectory = HttpContext.Current.Server.MapPath("~/ReportLogs");
private static readonly object _lock = new object();
static ReportLogger()
{
try
{
Directory.CreateDirectory(LogDirectory);
}
catch
{
// 忽略在创建目录时发生的错误
}
}
public static void Log(string requestId, string message)
{
// 使用 Task.Run 将文件写入操作放入后台线程，避免阻塞主流程
Task.Run(() =>
{
try
{
string logFilePath = Path.Combine(LogDirectory, $"log_{DateTime.Now:yyyy-MM-dd}.txt");
string logMessage = $"[{DateTime.Now:yyyy-MM-dd HH:mm:ss.fff}] [RequestID: {requestId}] {message}{Environment.NewLine}";
// 使用锁确保多线程写入安全
lock (_lock)
{
File.AppendAllText(logFilePath, logMessage);
}
}
catch
{
// 忽略日志写入失败
}
});
}
}
}
web.config
securetoken就是ReportLogin.aspx验证的_internalSecureToken，保持一致即可
<?xml version="1.0" encoding="utf-8"?>
<!--
有关如何配置 ASP.NET 应用程序的详细信息，请访问
https://go.microsoft.com/fwlink/?LinkId=169433
-->
<configuration>
<!--
有关 web.config 更改的说明，请参见 http://go.microsoft.com/fwlink/?LinkId=235367。
可在 <httpRuntime> 标记上设置以下特性。
<system.Web>
<httpRuntime targetFramework="4.8" />
</system.Web>
-->
<system.web>
<compilation debug="true" targetFramework="4.8" />
<!-- 接口超时时间，1800秒=60*30（30分钟，配合报表下载），需要同步修改IIS的超时时间设置 -->
<httpRuntime targetFramework="4.6.1" executionTimeout="1800"/>
</system.web>
<appSettings>
<!-- U9报表SSO登录地址 -->
<add key="U9LoginBaseUrl" value="http://localhost/U9/api/v1/ReportLogin.aspx?securetoken=2FFEAB291D1E7EAF76E94EBE93249C9D" />
<!-- U9报表前缀地址 -->
<add key="ReportBaseUrl" value="http://localhost/U9/erp/display.aspx" />
<!-- p参数AES解密的密钥跟向量 -->
<add key="EncryptionKey" value="106FE9250C1F5FC4A5BAB670EB663AF0" />
<add key="EncryptionIV" value="0C1F5FC4A5BAB670" />
<!-- Puppeteer程序下载报表超时时间，默认30分钟（预防首次报表访问冷启动等待时间长） -->
<add key="PuppeteerTimeoutMinutes" value="30" />
<!-- DownloadReport接口超时时间，60秒 -->
<add key="ExpirationTimeSeconds" value="60"/>
<!-- U9报表类型对应的link地址 -->
<!-- 总账-总账 -->
<add key="FI_GL_Process_Rpt_GeneralLedgerRpt" value="lnk=FI.GL.Process.Rpt.GeneralLedgerRpt&sId=3002&newopen=true" />
<!-- 总账-明细账 -->
<add key="FI_GL_Process_Rpt_DetailsRpt" value="lnk=FI.GL.Process.Rpt.DetailsRpt&sId=3002&newopen=true" />
<!-- 总账-序时账 -->
<add key="FI_GL_Process_Rpt_SequenceBookRpt" value="lnk=FI.GL.Process.Rpt.SequenceBookRpt&sId=3002&newopen=true" />
<!-- 总账-发生额及余额表 -->
<add key="FI_GL_Process_Rpt_TotalBalanceRpt" value="lnk=FI.GL.Process.Rpt.TotalBalanceRpt&sId=3002&newopen=true" />
<!-- 总账-资产明细表 -->
<add key="FA_SubsidiaryLedgerRptMainUIForm" value="lnk=EAM.FA.Report.FA_SubsidiaryLedgerRptMainUIForm&sId=3009&newopen=true" />
</appSettings>
<system.codedom>
<compilers>
<compiler language="c#;cs;csharp" extension=".cs" type="Microsoft.CodeDom.Providers.DotNetCompilerPlatform.CSharpCodeProvider, Microsoft.CodeDom.Providers.DotNetCompilerPlatform, Version=2.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" warningLevel="4" compilerOptions="/langversion:default /nowarn:1659;1699;1701" />
<compiler language="vb;vbs;visualbasic;vbscript" extension=".vb" type="Microsoft.CodeDom.Providers.DotNetCompilerPlatform.VBCodeProvider, Microsoft.CodeDom.Providers.DotNetCompilerPlatform, Version=2.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" warningLevel="4" compilerOptions="/langversion:default /nowarn:41008 /define:_MYTYPE=\"Web\" /optionInfer+" />
</compilers>
</system.codedom>
<runtime>
<assemblyBinding xmlns="urn:schemas-microsoft-com:asm.v1">
<dependentAssembly>
<assemblyIdentity name="System.Web.Helpers" publicKeyToken="31bf3856ad364e35" />
<bindingRedirect oldVersion="1.0.0.0-3.0.0.0" newVersion="3.0.0.0" />
</dependentAssembly>
<dependentAssembly>
<assemblyIdentity name="System.Web.WebPages" publicKeyToken="31bf3856ad364e35" />
<bindingRedirect oldVersion="1.0.0.0-3.0.0.0" newVersion="3.0.0.0" />
</dependentAssembly>
<dependentAssembly>
<assemblyIdentity name="System.Web.Mvc" publicKeyToken="31bf3856ad364e35" />
<bindingRedirect oldVersion="1.0.0.0-5.3.0.0" newVersion="5.3.0.0" />
</dependentAssembly>
<dependentAssembly>
<assemblyIdentity name="System.Runtime.CompilerServices.Unsafe" publicKeyToken="b03f5f7f11d50a3a" culture="neutral" />
<bindingRedirect oldVersion="0.0.0.0-6.0.0.0" newVersion="6.0.0.0" />
</dependentAssembly>
<dependentAssembly>
<assemblyIdentity name="System.Memory" publicKeyToken="cc7b13ffcd2ddd51" culture="neutral" />
<bindingRedirect oldVersion="0.0.0.0-4.0.1.1" newVersion="4.0.1.1" />
</dependentAssembly>
<dependentAssembly>
<assemblyIdentity name="Microsoft.Extensions.Primitives" publicKeyToken="adb9793829ddae60" culture="neutral" />
<bindingRedirect oldVersion="0.0.0.0-2.2.0.0" newVersion="2.2.0.0" />
</dependentAssembly>
<dependentAssembly>
<assemblyIdentity name="System.Buffers" publicKeyToken="cc7b13ffcd2ddd51" culture="neutral" />
<bindingRedirect oldVersion="0.0.0.0-4.0.3.0" newVersion="4.0.3.0" />
</dependentAssembly>
<dependentAssembly>
<assemblyIdentity name="System.Text.Encodings.Web" publicKeyToken="cc7b13ffcd2ddd51" culture="neutral" />
<bindingRedirect oldVersion="0.0.0.0-6.0.0.0" newVersion="6.0.0.0" />
</dependentAssembly>
<dependentAssembly>
<assemblyIdentity name="Microsoft.Bcl.AsyncInterfaces" publicKeyToken="cc7b13ffcd2ddd51" culture="neutral" />
<bindingRedirect oldVersion="0.0.0.0-5.0.0.0" newVersion="5.0.0.0" />
</dependentAssembly>
<dependentAssembly>
<assemblyIdentity name="System.Threading.Tasks.Extensions" publicKeyToken="cc7b13ffcd2ddd51" culture="neutral" />
<bindingRedirect oldVersion="0.0.0.0-4.2.0.1" newVersion="4.2.0.1" />
</dependentAssembly>
<dependentAssembly>
<assemblyIdentity name="System.Text.Json" publicKeyToken="cc7b13ffcd2ddd51" culture="neutral" />
<bindingRedirect oldVersion="0.0.0.0-5.0.0.1" newVersion="5.0.0.1" />
</dependentAssembly>
</assemblyBinding>
</runtime>
</configuration>
优化访问路由（附加）
通过增加Global.asax文件，自定义路由
从/DownloadReport.ashx?reporttype=FI_GL_Process_Rpt_DetailsRpt&......的形式改为/DownloadReport/FI_GL_Process_Rpt_DetailsRpt?......的形式
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.Security;
using System.Web.SessionState;
using System.Web.Routing; // 核心路由命名空间
using System.Web.Compilation; // 用于 BuildManager
using System.Web.UI; // 用于 IRouteHandler
using System.Web.Mvc;
namespace SHAPIPost
{
// 为 .ashx 文件创建一个自定义的路由处理器
public class AshxRouteHandler : IRouteHandler
{
private readonly string _virtualPath;
public AshxRouteHandler(string virtualPath)
{
_virtualPath = virtualPath;
}
public IHttpHandler GetHttpHandler(RequestContext requestContext)
{
// 使用 BuildManager 从虚拟路径动态创建处理程序实例
return BuildManager.CreateInstanceFromVirtualPath(
_virtualPath, typeof(IHttpHandler)) as IHttpHandler;
}
}
public class Global : System.Web.HttpApplication
{
protected void Application_Start(object sender, EventArgs e)
{
// 在应用程序启动时运行的代码
RegisterRoutes(RouteTable.Routes);
}
void RegisterRoutes(RouteCollection routes)
{
// 注册报表下载处理器路由
routes.Add("DownloadReportHandlerRoute", new Route(
"DownloadReport/{reporttype}", // 路由模板
new AshxRouteHandler("~/DownloadReport.ashx") // 目标处理程序
));
}
protected void Session_Start(object sender, EventArgs e)
{
}
protected void Application_BeginRequest(object sender, EventArgs e)
{
}
protected void Application_AuthenticateRequest(object sender, EventArgs e)
{
}
protected void Application_Error(object sender, EventArgs e)
{
}
protected void Session_End(object sender, EventArgs e)
{
}
protected void Application_End(object sender, EventArgs e)
{
}
}
}
测试程序
使用控制台应用程序测试
我的一般处理程序是发布在8001端口的
using Newtonsoft.Json;
using Newtonsoft.Json.Linq;
using System;
using System.IO;
using System.Net;
using System.Net.Http;
using System.Security.Cryptography;
using System.Text;
using System.Threading;
using System.Threading.Tasks;
namespace 测试用例
{
/// <summary>
/// 带有超时设置的WebClient
/// </summary>
public class WebClientWithTimeout : WebClient
{
public int Timeout { get; set; }
protected override WebRequest GetWebRequest(Uri address)
{
WebRequest wr = base.GetWebRequest(address);
if (wr != null)
{
wr.Timeout = this.Timeout;
}
return wr;
}
}
class Program
{
// 密钥和IV必须与 DownloadReport.ashx 中的完全相同
private const string _encryptionKey = "106FE9250C1F5FC4A5BAB670EB663AF0";
private const string _encryptionIV = "0C1F5FC4A5BAB670";
private static readonly SemaphoreSlim _downloadLimiter = new SemaphoreSlim(50);
private static readonly string BASE_URL = "http://localhost:8001";
static void Main(string[] args)
{
string username = "demo";
string enterpriseId = "666";
string orgID = "1001008170100181"; // 101组织的ID
string orgName = "XXXX公司";
// 明细账
string accPeriodStart = "2025-01";
string accPeriodEnd = "2025-03";
string filename = GetFileName(accPeriodStart, accPeriodEnd, orgName, "明细账");
DateTime epoch = new DateTime(1970, 1, 1, 0, 0, 0, DateTimeKind.Utc);
long timestamp = (long)(DateTime.UtcNow - epoch).TotalSeconds;
string payload = string.Format("usercode={0}&entcode={1}&org={2}×tamp={3}", username, enterpriseId, orgID, timestamp);
string encryptedPayload = EncryptString(payload);
string directDownloadUrl = $"{BASE_URL}/DownloadReport/FI_GL_Process_Rpt_DetailsRpt?p={encryptedPayload}&exporttype={exportType}&filename={filename}&taskID={taskID}&CaseName={caseName}&AccountingPeriodStart={accPeriodStart}&AccountingPeriodEnd={accPeriodEnd}";
DownloadFile(exportType, filename, directDownloadUrl);
// 总账、序时账...其他报表的测试用例
Console.WriteLine("\n按任意键退出...");
Console.ReadKey();
}
/// <summary>
/// 同步下载文件的完整流程
/// </summary>
private static void DownloadFile(string exportType, string filename, string requestUrl)
{
_downloadLimiter.Wait(); // 等待一个空位
try
{
Console.WriteLine($"\n[步骤 1] 请求生成报表: {filename}");
string fileUrl = null;
string filePathToDelete = null;
using (var webClient = new WebClientWithTimeout())
{
webClient.Timeout = 1800000; // 设置30分钟超时
webClient.Encoding = Encoding.UTF8;
// 1. 调用 DownloadReport.ashx 获取下载地址
try
{
string jsonResponse = webClient.DownloadString(requestUrl);
Console.WriteLine($" - 服务器响应: {jsonResponse}");
var result = JsonConvert.DeserializeObject<JObject>(jsonResponse);
if (result.Value<bool>("IsSuccess"))
{
fileUrl = result.Value<string>("Url");
filePathToDelete = result.Value<string>("DelUrl");
Console.WriteLine($" - 成功获取下载地址: {fileUrl}");
}
else
{
Console.WriteLine($" - 错误: {result["Message"]}");
return;
}
}
catch (Exception ex)
{
Console.WriteLine($" - [步骤 1] 失败: {ex.Message}");
return;
}
// 2. 从获取到的URL下载文件
if (!string.IsNullOrEmpty(fileUrl))
{
Console.WriteLine($"\n[步骤 2] 开始从 {fileUrl} 下载文件...");
try
{
string fileExtension = exportType.Equals("PDF", StringComparison.OrdinalIgnoreCase) ? ".pdf" : (exportType.Equals("CSV", StringComparison.OrdinalIgnoreCase) ? ".csv" : ".xlsx");
string fileNameWithExt = $"{filename}{fileExtension}";
string savePath = Path.Combine(AppDomain.CurrentDomain.BaseDirectory, fileNameWithExt);
if (File.Exists(savePath)) File.Delete(savePath);
byte[] fileBytes = webClient.DownloadData(fileUrl);
File.WriteAllBytes(savePath, fileBytes);
Console.WriteLine($" - 下载成功! 文件已保存至: {savePath} (大小: {fileBytes.Length} 字节)");
}
catch (Exception ex)
{
Console.WriteLine($" - [步骤 2] 失败: {ex.Message}");
}
}
// 3. (可选) 删除服务器上的文件
//if (!string.IsNullOrEmpty(filePathToDelete))
//{
// Console.WriteLine($"\n[步骤 3] 请求删除服务器文件: {filePathToDelete}");
// try
// {
// using (var webClient = new System.Net.WebClient())
// {
// webClient.Encoding = System.Text.Encoding.UTF8;
// webClient.DownloadString(filePathToDelete);
// }
// }
// catch (Exception ex)
// {
// Console.WriteLine($" - [步骤 3] 失败: {ex.Message}");
// }
//}
}
}
finally
{
_downloadLimiter.Release(); // 释放一个空位，让其他等待的请求可以进入
}
}
private static string GetFileName(string accPeriodStart, string accPeriodEnd, string orgName, string v)
{
if (accPeriodStart == accPeriodEnd)
{
return $"{orgName} {accPeriodStart}{v}";
}
else
{
return $"{orgName} {accPeriodStart}至{accPeriodEnd}{v}";
}
}
public static string EncryptString(string plainText)
{
using (Aes aesAlg = Aes.Create())
{
aesAlg.Key = Encoding.UTF8.GetBytes(_encryptionKey);
aesAlg.IV = Encoding.UTF8.GetBytes(_encryptionIV);
ICryptoTransform encryptor = aesAlg.CreateEncryptor(aesAlg.Key, aesAlg.IV);
using (MemoryStream msEncrypt = new MemoryStream())
{
using (CryptoStream csEncrypt = new CryptoStream(msEncrypt, encryptor, CryptoStreamMode.Write))
{
using (StreamWriter swEncrypt = new StreamWriter(csEncrypt))
{
swEncrypt.Write(plainText);
}
byte[] encrypted = msEncrypt.ToArray();
// 使用不依赖 System.Web 的方式生成URL安全的Base64字符串
// 这段代码的功能与 HttpServerUtility.UrlTokenEncode 相同
return Convert.ToBase64String(encrypted)
.Replace('+', '-')
.Replace('/', '_')
.TrimEnd('=');
}
}
}
}
}
}
测试结果
输出PDF把exportType=“PDF”即可;
可以看到上面我设置的默认方案是2025-06至2025-08的
输出的excel表已经是按照条件的2025-01至2025-03的
评论
